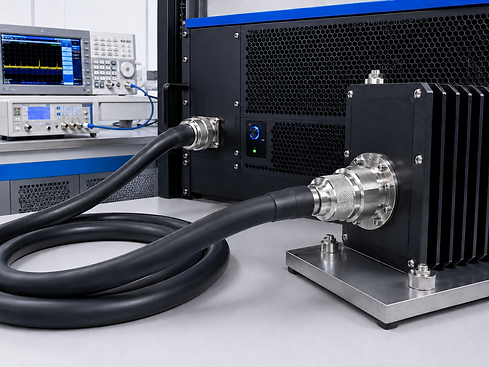

Performance That Delivers

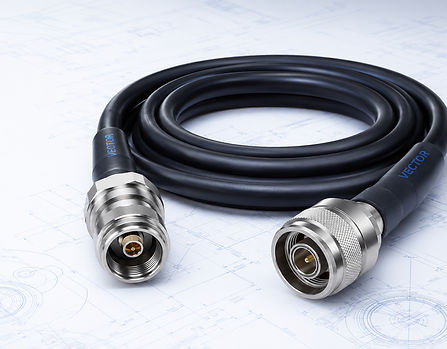

Designed for reliable power transmission, these cable assemblies support high-power RF systems while maintaining stable impedance, low VSWR and dependable mechanical performance.
Final electrical and power ratings depend on cable diameter, length, connector type, ambient temperature, altitude, duty cycle and installation conditions.
Built for Mission-Critical Applications
Key Specifications
Frequency Range DC to 6 GHz
Maximum Average Power Up to 2000 W at 3 GHz and 25°C for the applicable 14.7 mm configuration Impedance 50 Ω
VSWR < 1.25:1 at 3 GHz for the applicable configuration
Shielding Effectiveness > 100 dB
Operating Temperature −55°C to +85°C
Connector Options 7/16 DIN, N, L27, L29, 4.3-10 or custom
Compliance RoHS compliant options
Representative values only. Final ratings depend on cable size, assembly length, connector type, ambient temperature, altitude, duty cycle and installation conditions. Confirm the final specification for each configured assembly.
Available Product Options

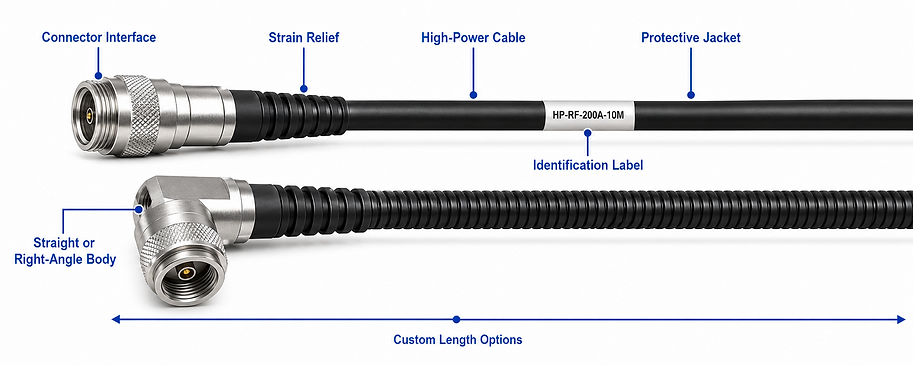

Configure Your Assembly
We tailor high-power cable assemblies to match your exact electrical, mechanical and installation requirements.
Assembly length Connector interfaces Straight or right-angle connector bodies Strain relief
High-power cable selection Protective jacket or armor Identification labels Electrical testing
