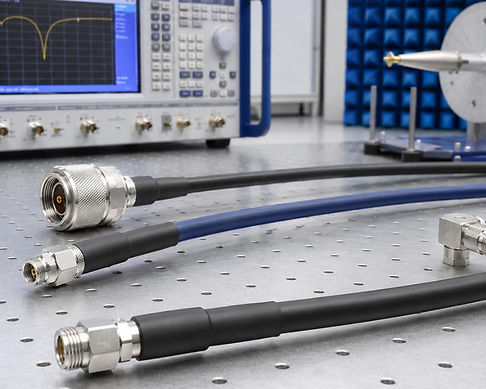

Stable Performance for Demanding RF Applications
Our low-loss and phase-stable cable assemblies are designed to maintain consistent signal integrity across microwave and millimeter-wave frequency ranges.
Optimized cable construction, precision connectors and protective options help reduce insertion loss while maintaining phase and amplitude stability during flexing, movement and temperature changes.
Typical Applications
Key Specifications
Frequency Up to 110 GHz
VSWR Typically ≤1.25 to ≤1.50
Insertion Loss Low-loss configurations available
Mechanical Phase Stability As low as ±3°, depending on configuration
Amplitude As low as ±0.03 dB
Flex Life Up to 100,000 cycles
Construction Armored or unarmored options
Representative values are shown for reference. Final specifications depend on the selected cable, connectors, length and construction.
Available Product Options

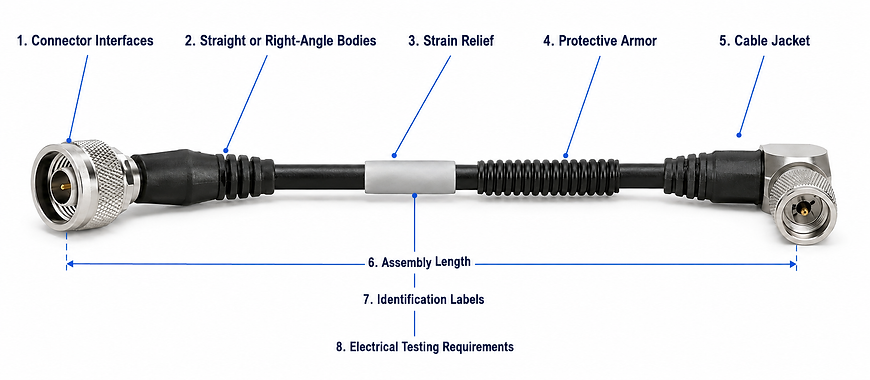

Available Customization
-
Assembly length Connector interfaces Straight or right-angle bodies Protective armor
-
Cable jacket Strain relief Identification labels Electrical testing
