Formable Performance for Fixed Installations
Semi-flexible constructions combine low cost with easy manual forming for compact internal routing. Semi-steel assemblies use seamless copper-tube shielding to maintain stable formed geometry and provide strong protection against interference.
Available configurations cover instrument wiring, fixed RF routing and high-frequency interconnections, with selected semi-steel models operating up to 67 GHz.
Typical Applications
Key Specifications
Frequency 18–67 GHz, depending on configuration
VSWR <1.25 to <1.40
Cable OD 1.2–3.6 mm
Insertion Loss (1 m) Maximum specified values <2.1 to <8.7 dB
Semi-Flexible Operating Temperature −45°C to +125°C
Semi-Steel Operating Temperature −55°C to +250°C
Shielding Construction Tin-dipped woven braid or seamless copper tube
Shielding Effectiveness >165 dB for semi-steel configurations
Representative catalog values. Final specifications depend on cable type, frequency, length and connector configuration.
Available Product Options

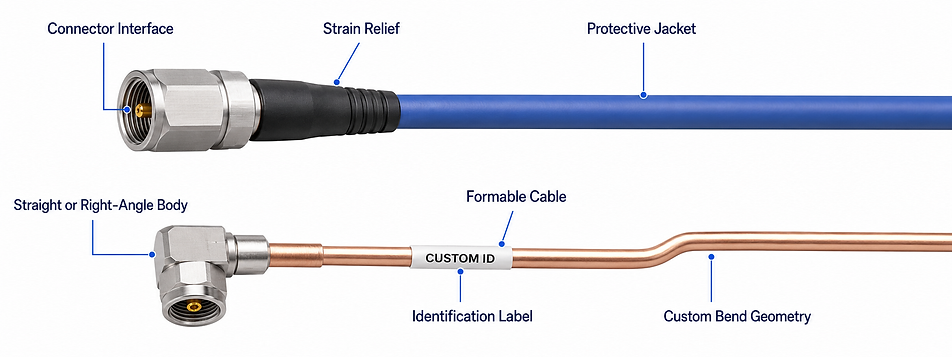

Available Customization
Assembly length Connector interfaces Straight or right-angle bodies
Protective sheath Formed routing geometry Identification labels Electrical testing
